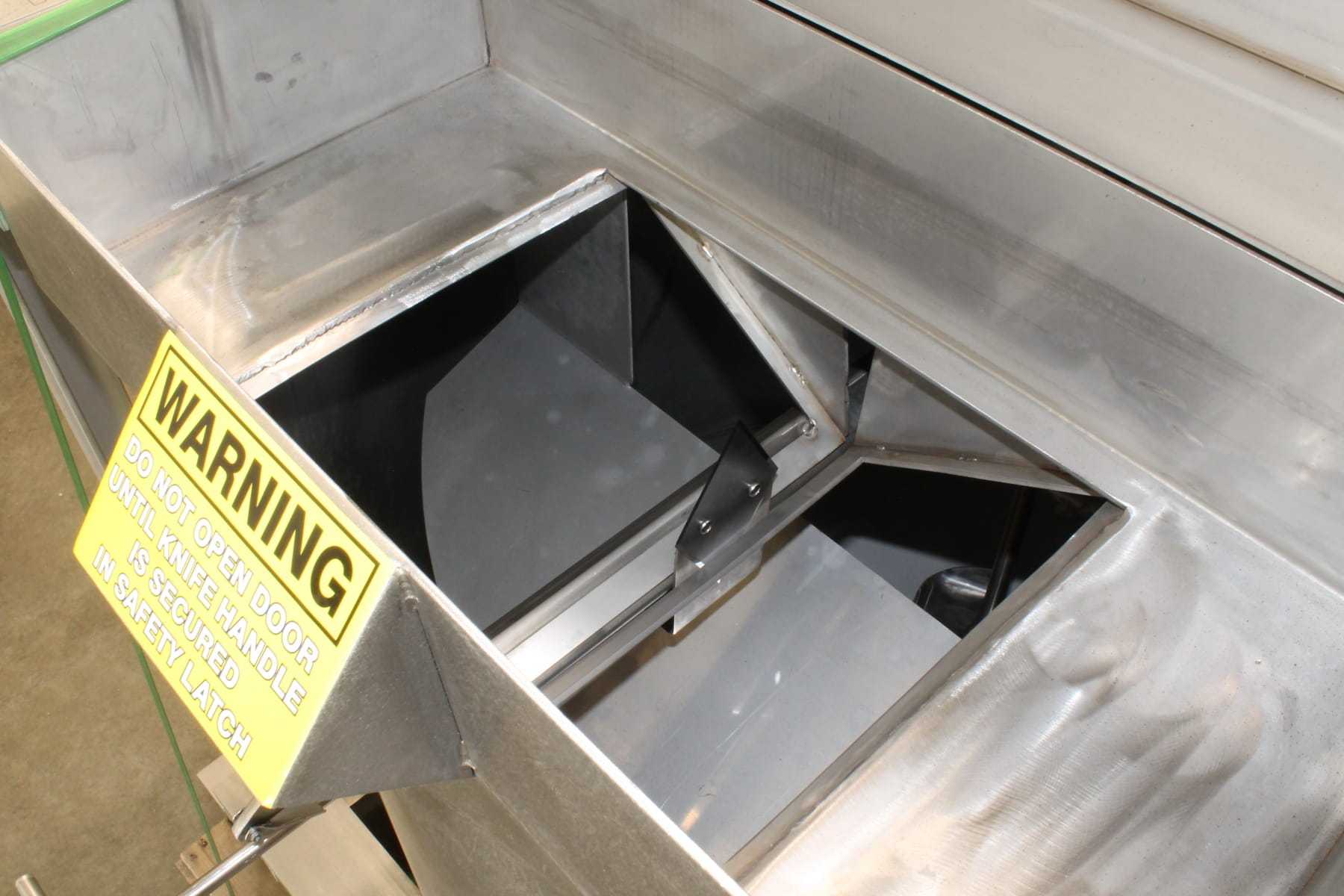

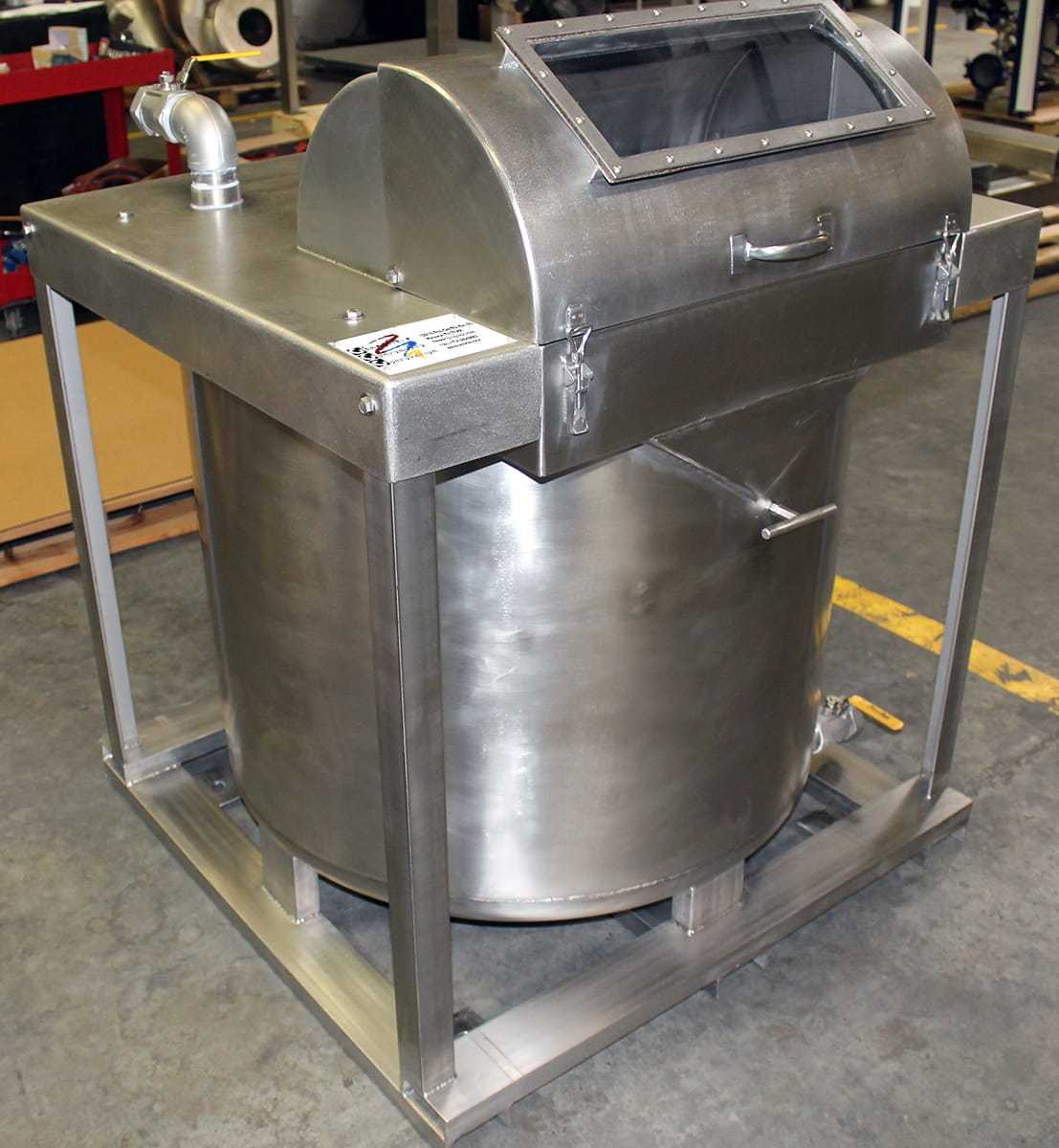

The SAFECHEM Mixing Tank features safety first, with a hinged closed hood and sight glass. The bags are placed on a conveyer to slide them across a bag slitter that opens the bags without product loss. Bag slitters are available with a manual star slitter or pneumatic style slitter.  The SAFECHEM Mixing Tank features a Conical Induction Agitator that will quickly dissolve caustic soda and dispense other powdered additives.

Features & Benefits

  • Uniformly mixes and blends liquids with varying viscosities
  • Dissolves polymers and caustics rapidly
  • Emulsifies multiple liquids
  • Air or electric motor drive
  • Less horsepower requirement
  • Suspends solids in a liquid medium

The Conical Induction Mixer

The Conical Induction Mixer is in a class of its own. The two mixing elements perform on the Airfoil/Bernoulli Principle “when velocity is high, pressure is low; inversely, when pressure is high, velocity is low”.

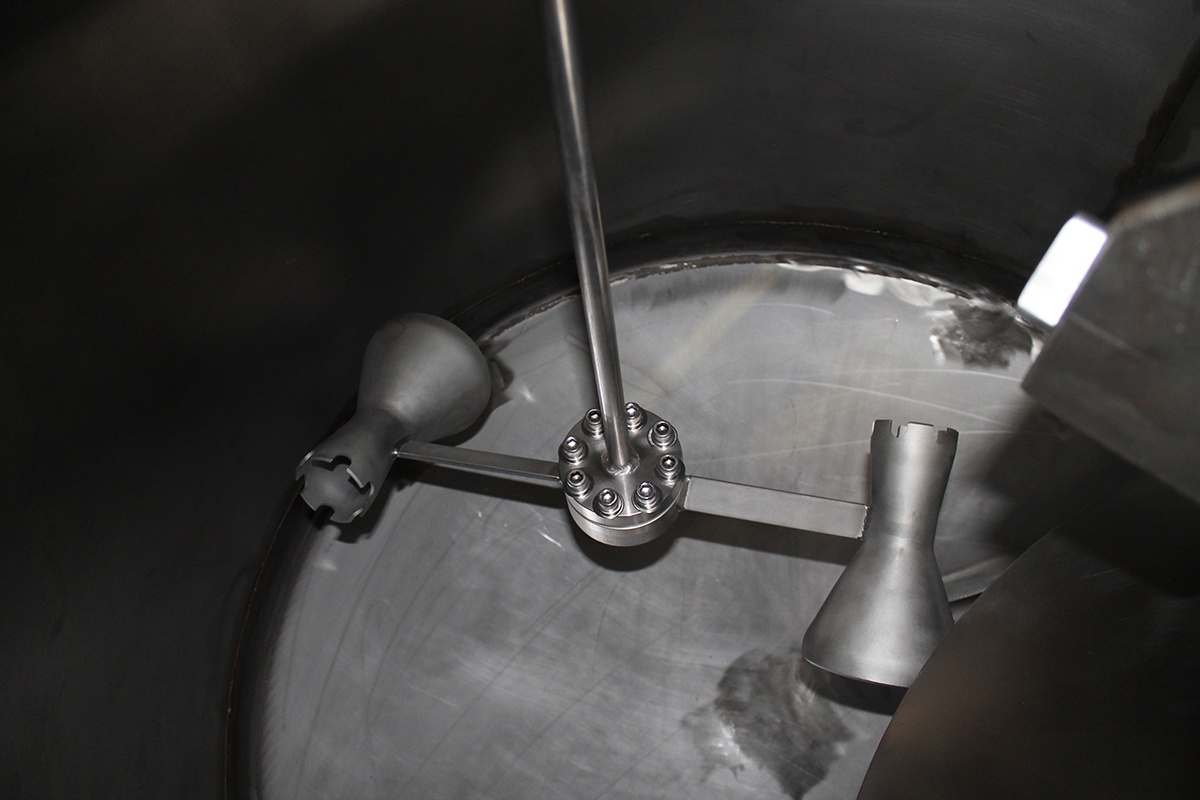

As the Conical Induction Mixing Elements rotate around a center axis, the liquid or slurry is drawn into each lone element. The velocity increases as it passes through the Cone Venturi, generating a high velocity that produces a low pressure in the surrounding liquid. The generated low pressure region introduces more liquid through the Cone Mixing Elements.

The Venturi effect in high viscosity slurries translates into a reduction in horsepower requirement.




Fig. 1 Illustrates how the Conical Induction Mixer mixes and blends liquids

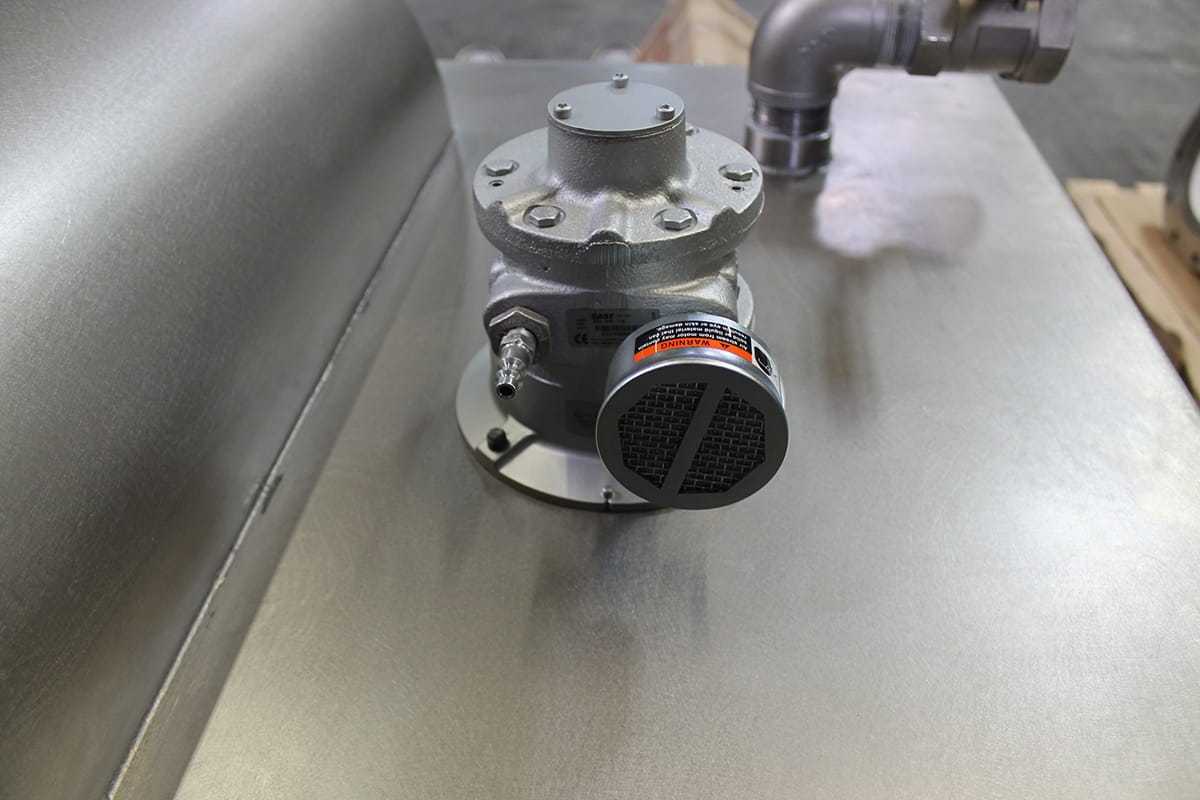

Fig. 2 Shows the 4 HP GAST Air Motor and liquid fill connection.

Please click on the corresponding links below to view a PDF file of our SAFECHEM Mixing Tank Models:

SAFECHEM Mixing Tank:
SAFECHEM Mixing Tank (Model C-CMT-100-01)

To learn how our systems can lower your costs and improve the quality of your products, contact us for more information!

Please click on the corresponding links below to access a PDF file of our SAFECHEM Mixing Tank Brochures.

SAFECHEM Mixing Tank
SAFECHEM Mixing Tank Brochure

To learn how our systems can lower your costs and improve the quality of your products, contact us for more information!

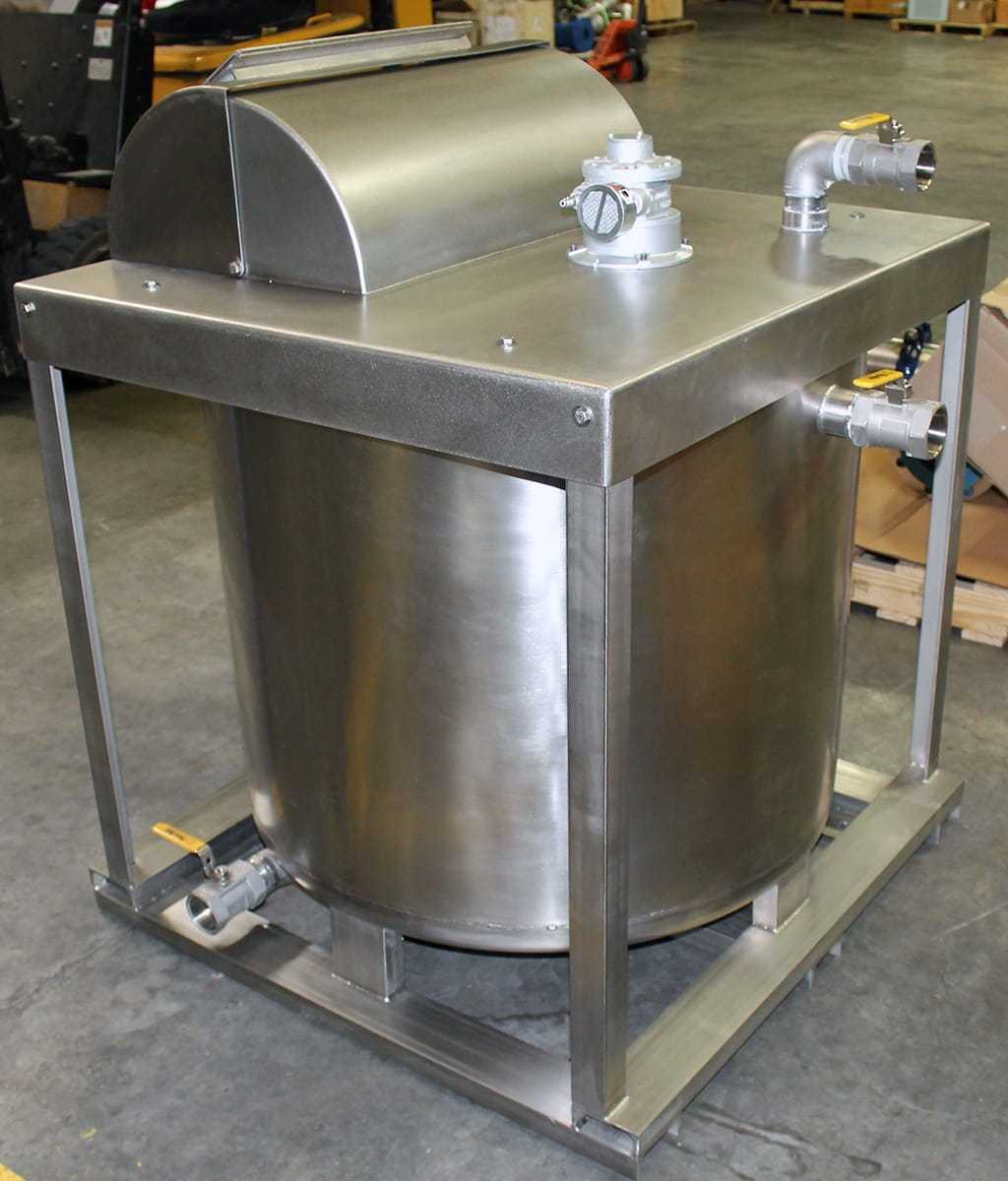

SAFECHEM Mixing Tank Pictures
